SmartPeak Features

SmartPeak provides a plethora of features for analytical chemistry data processing. An incomplete set of features are described below.

Audit trail and data provenance

A complete record of all actions and data processing steps invoked by the user is often required in regulated environments. In addition, for debugging, it is useful to have a record of all actions the software has taken.

SmartPeak records all actions and data processing steps for audit trail and debugging purposes at two levels: 1) an application log, and 2) feature log.

Application log The application log records all actions taken by SmartPeak during a user’s session. The log is written to the user’s hard drive Path to logs and can also be viewed within the SmartPeak GUI view | logs. Each action or line-item in the log is groups according to message type (e.g., INFO, DEBUG, WARNING, ERROR, etc.).

Feature log The feature log records all features that were found in a sample along with all changes that were made to each feature during a user’s session. Each feature change is time-stamped so that there is complete provenance of any reported data generated by SmartPeak. In addition, the feature log enables workflow checkpointing whereby a previously saved feature log for a particular sample can be loaded in a later session so that the user does not need to re-run a previously ran workflow for a sample. Feature logs are recorded during the STORE_FEATURES and can be loaded using the LOAD_FEATURES workflow steps. The used features can be visualized within the SmartPeak GUI using the various views provided. The pyOpenMS python module can be used for further post processing and analysis of features in python (see https://github.com/AutoFlowResearch/BFAIR for examples).

Automated data processing workflows and workflow execution engine

Data procesing workflow presets

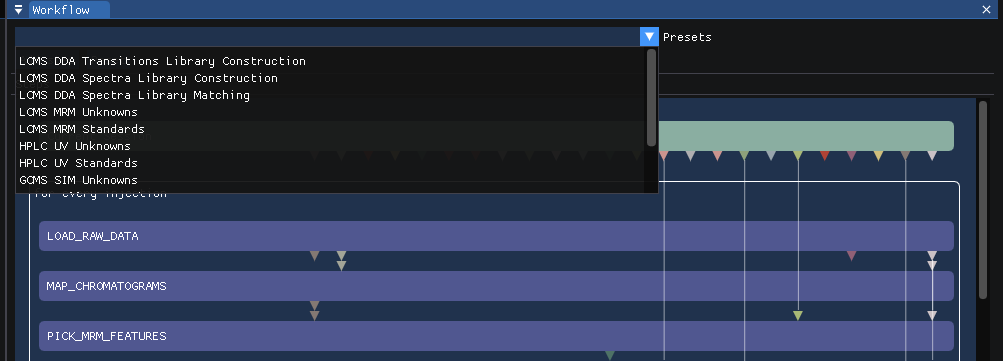

SmartPeak has been used and optimized for various analytical chemistry workflows. An example set of optimized workflows have been given presets within SmartPeak for faster selection and execution.

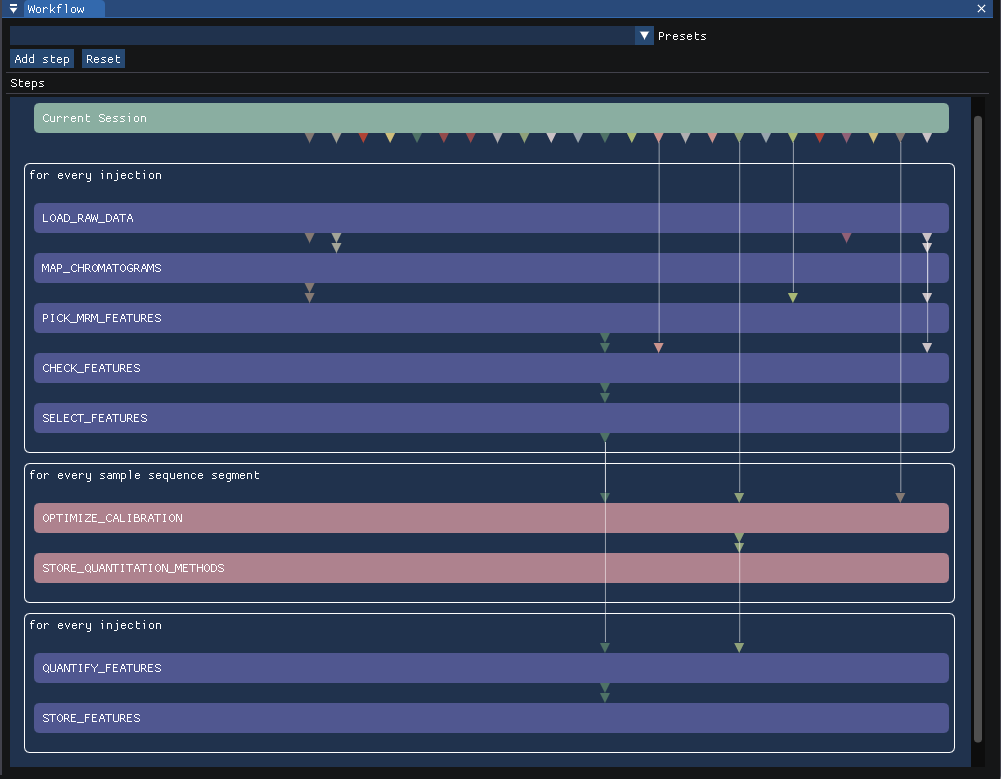

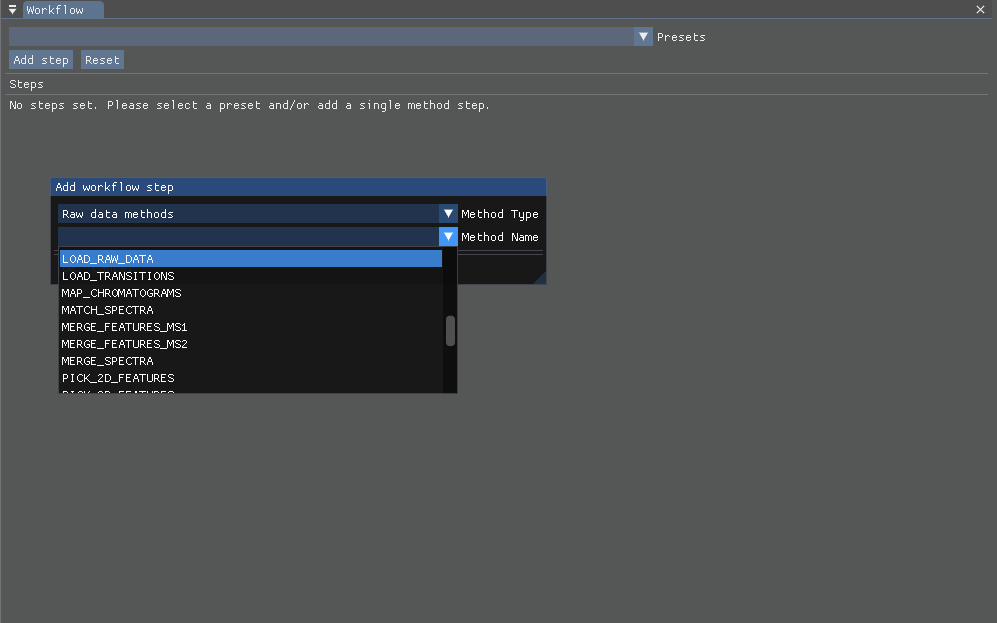

Please see tutorials for in depth walkthroughs for using each of the preset workflows. The workflow presets are also a good starting point for developing a custom workflow. Workflow steps can be added or removed using the GUI.

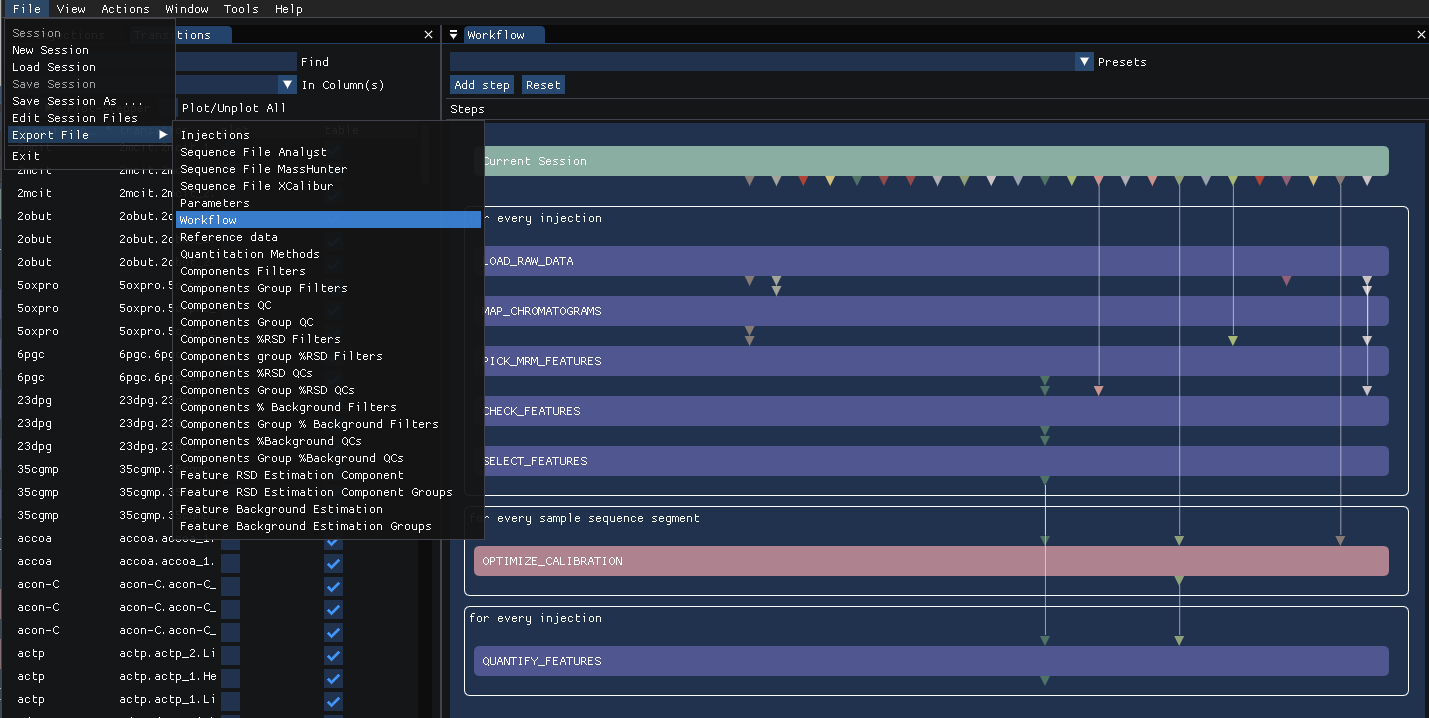

Modified workflows can be saved to a workflow.csv file and loaded into SmartPeak.

Workflow execution engine

SmartPeak includes a workflow engine that optimizes the order of workflow step executions and the resources used to process samples in parallel. Before any workflow is executed, SmartPeak determines which workflow steps can be executed in parallel and which need to be executed in serial by analyzing the workflow step dependencies.

The user has the option to specify the number of resources (i.e., CPU threads) that can be allocated to executing a workflow. By default, the maximum number of threads available to the user will be used. Once the order of workflow step executions and resources used to process samples in parallel are optimized, SmartPeak estimates the time needed to complete the workflow.

The time estimate is continuously updated as the workflow is executed to better reflect operating conditions.

The actual workflow time is logged and also displayed in the GUI.

While the number of CPU cores/threads determines the number of samples that can be ran in parallel, it is important to note that the system memory (i.e., RAM) provides an upper limit on the number of samples that can be run during a single workflow. If you find that workflows are taking a long time, we recommend profiling the system memory to see if your computer is out of memory. Please see the FAQ for tips on how to improve system memory utilization for workflows involved large numbers of samples and large data files (e.g., non-targeted metabolomics).

Workflow steps

All workflow steps are written in modern C++ so that workflows are as fast and safe as possible. Many of workflow steps that involve complex algorithms are wrappers around classes or functions that have been deposited in the open-source mass spectrometry library OpenMS an externally validated by the open-source community or scientific reviewers if the works were published in a peer-reviewed journal. SmartPeak integrates with the classes and functions natively so that workflows can be executed in memory without the need for expensive and time consuming disk IO. SmartPeak also provides logging, exception handling, and other facilities that would be expected of a professional application to ensure robust and reliable execution of open-source algorithms. A complete list of workflow steps and their description can be found in the FAQ. The SmartPeak team closely collaborates with the open-source community including with the developers at OpenMS, so if you have a workflow step request, please contact us.

Creating, saving, and loading sessions

Usage

A custom database is used by SmartPeak to store all SmartPeak application data, which is called the “session object”. The data includes user input, algorithm parameters, workflow steps, workflow step outputs, and UI settings. Certain user input and workflow step outputs are large (e.g., raw data files and feature files); SmartPeak does not store those directly, but stores the links to the files. This enables a user to share a relatively small session object with colleagues so that they can visualize the results of a SmartPeak workflow and interact with the SmartPeak UI just as the user had done when they saved the session. This also enables the user to re-run a workflow or further process a saved session from another computer so long as the computer has access to the files. Note that the user will be prompted to update the session file links if SmartPeak detects that the links are no longer valid prior to running any workflow that requires access to the session file data.

Example

After starting SmartPeak, create a new session by navigatin to file | new session.

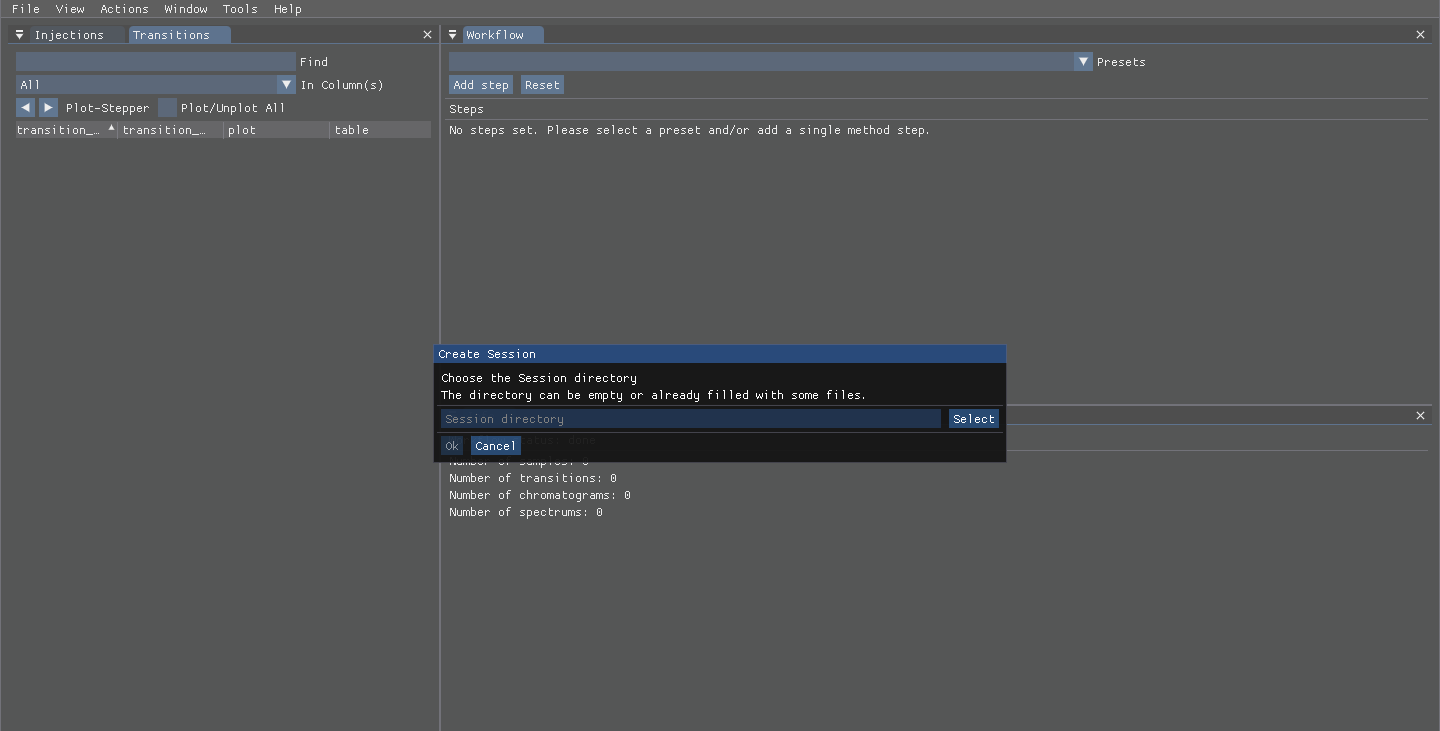

A dialogue box to select the folder to load/save session files will be displayed.

Files that have been named using the SmartPeak convention will be identified automatically. The user can select alternative files as needed. The modal will alert the user if missing sessions files are identified.

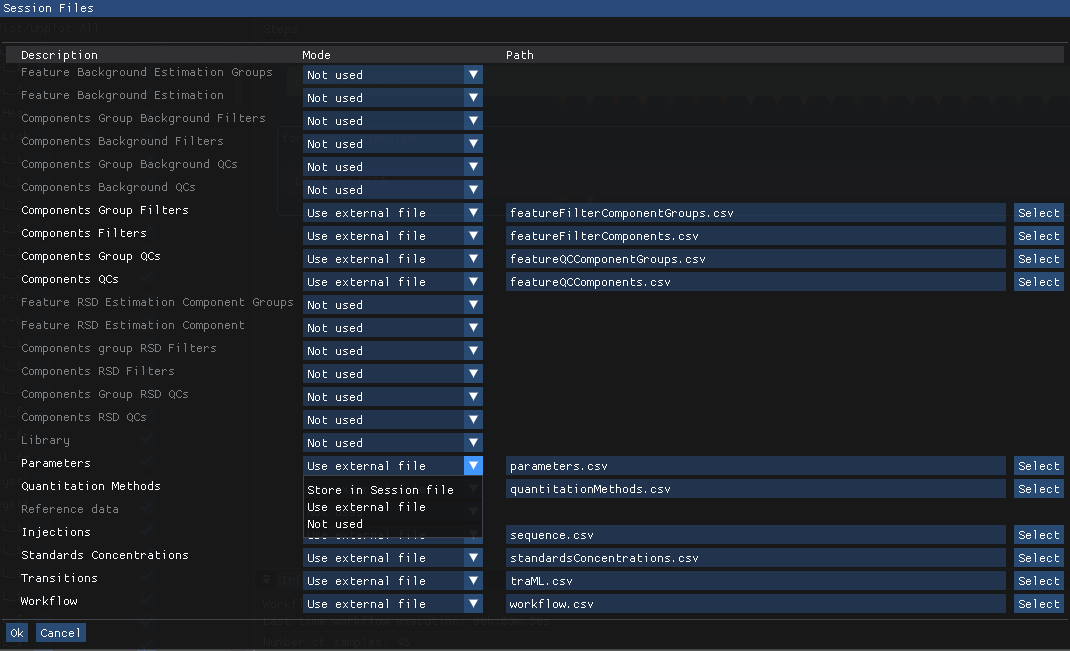

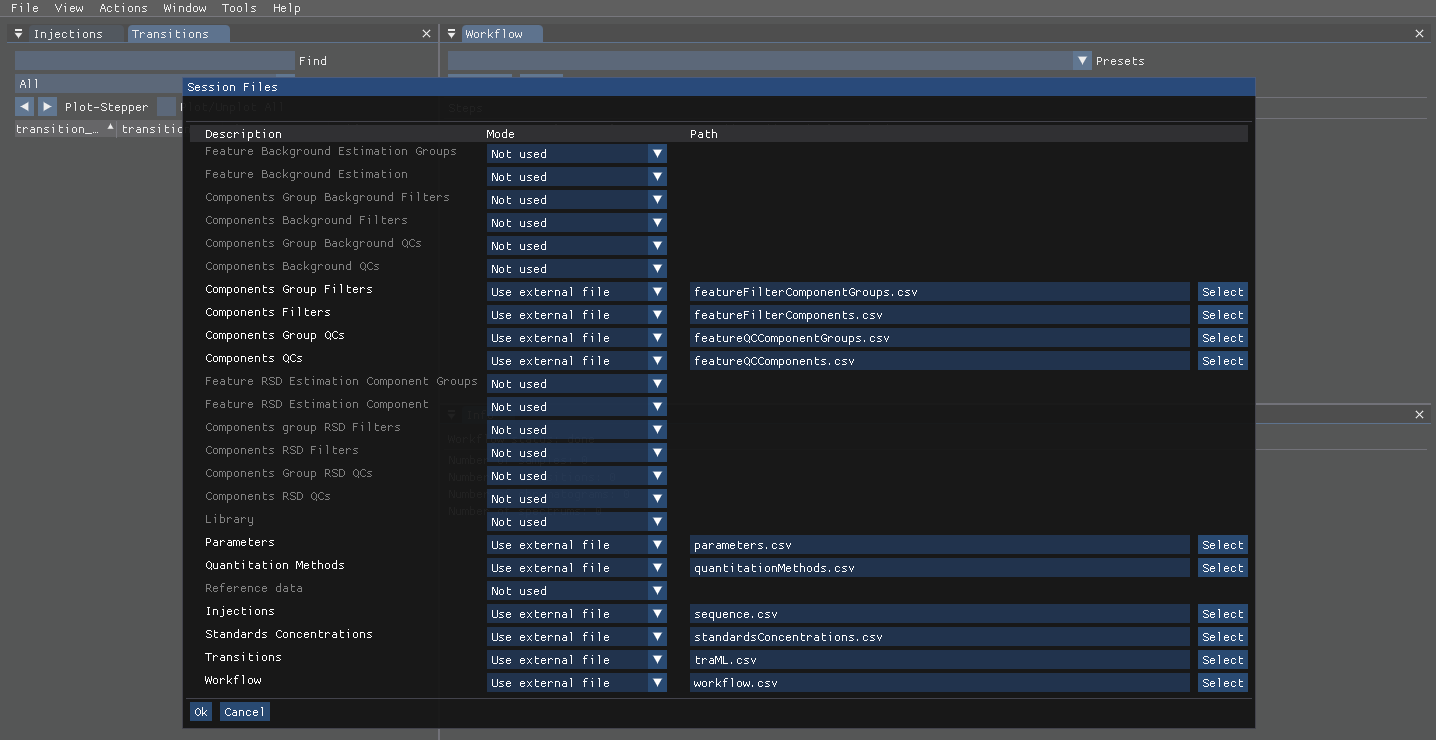

The user can specify which files should be stored within the SmartPeak session object, and which remain external to the session object.

The user can save all application settings including the current UI view to the session object.

Optimize calibration curves and quantitation methods

Usage

SmartPeak provides algorithms and workflow steps for automatically optimizing calibration curves. The user must first specify the quantitation method for each component to use for each transition and the amount of standards for each component in the Standards samples. The QuantitationMethods.csv and StandardsConcentrations.csv files, respectively, are used for these purposes. The user can optimize all calibration curves automatically using the workflow steps for OPTIMIZE_CALIBRATION and STORE_QUANTITATION_METHODS. The user can then review all calibration curves in the GUI to further optimize the quantitation methods semi-manually.

Example

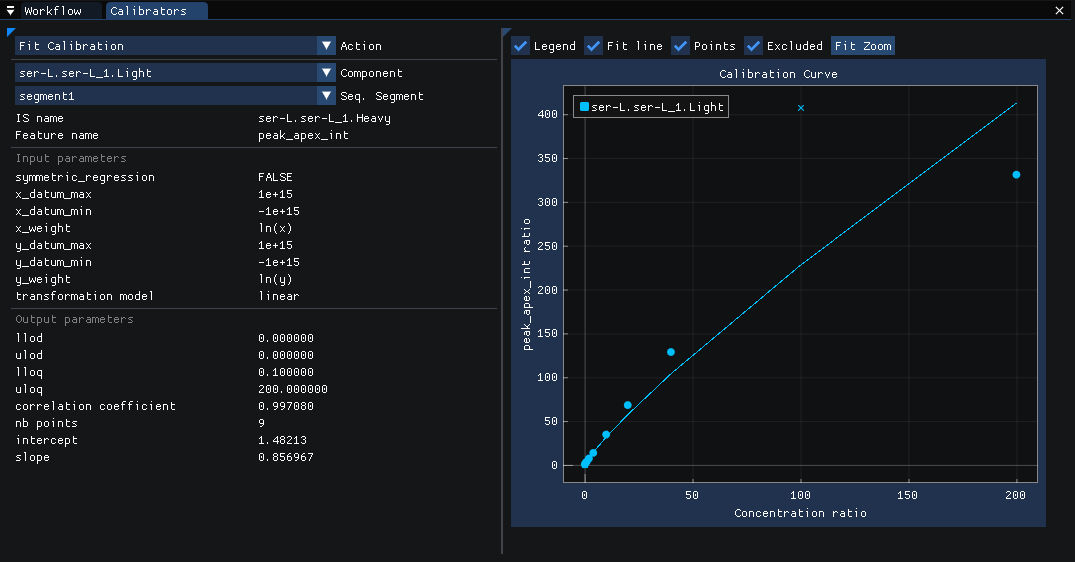

After running the workflow, the calibration curves for each quantitation method are available to view. The quantitation method parameters are shown on the left and the calibration curve and points are shown on the right. The user has the option to view different components and sequence segments using the menu on the top left. The user can also modify the quantitation method input parameters on the left.

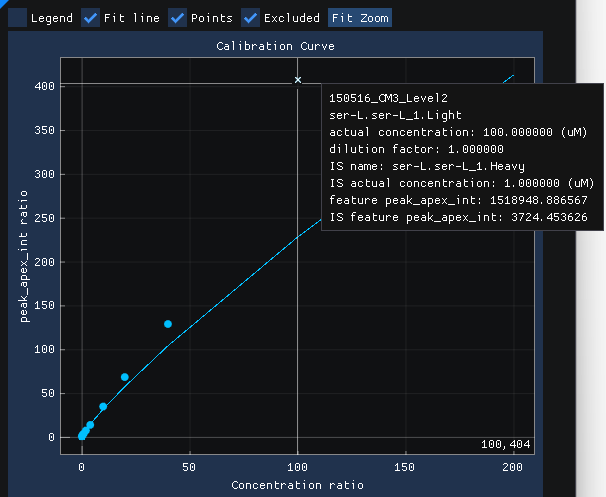

Each point (i.e.., Injection) can be hovered over and a tooltip will display with additional information about that particular point

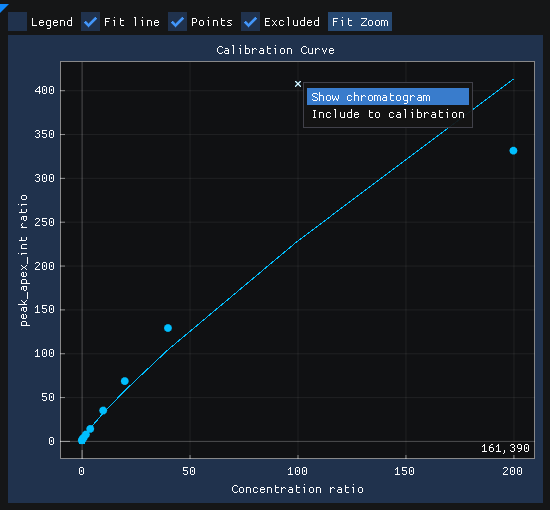

Each point can be right clicked to bring up a menu that allows for showing the chromatogram for the point or including/excluding the point from the calibration curve.

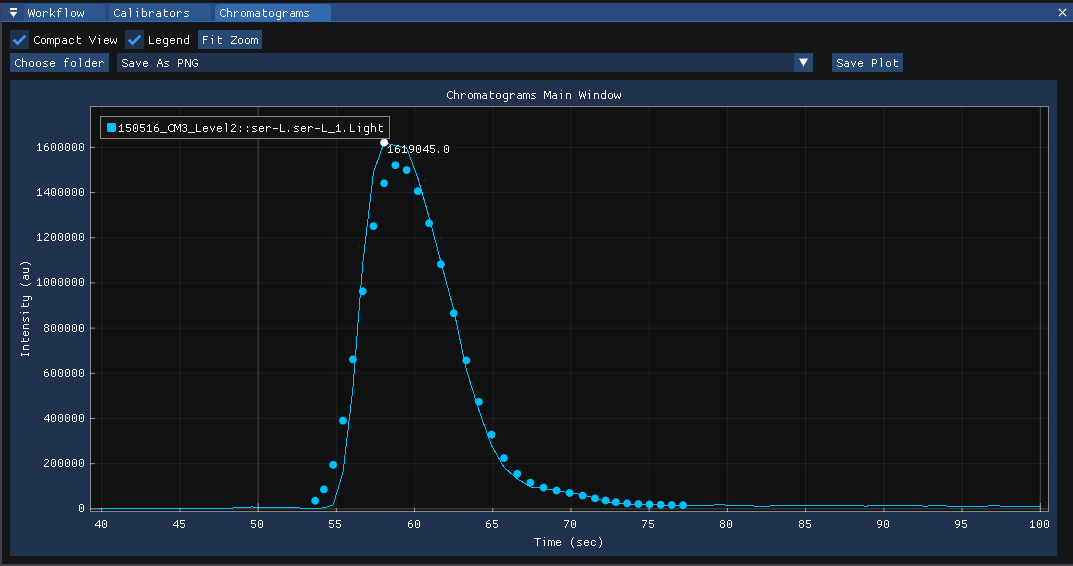

Selecting Show chromatogram brings up the chromatogram view for that point.

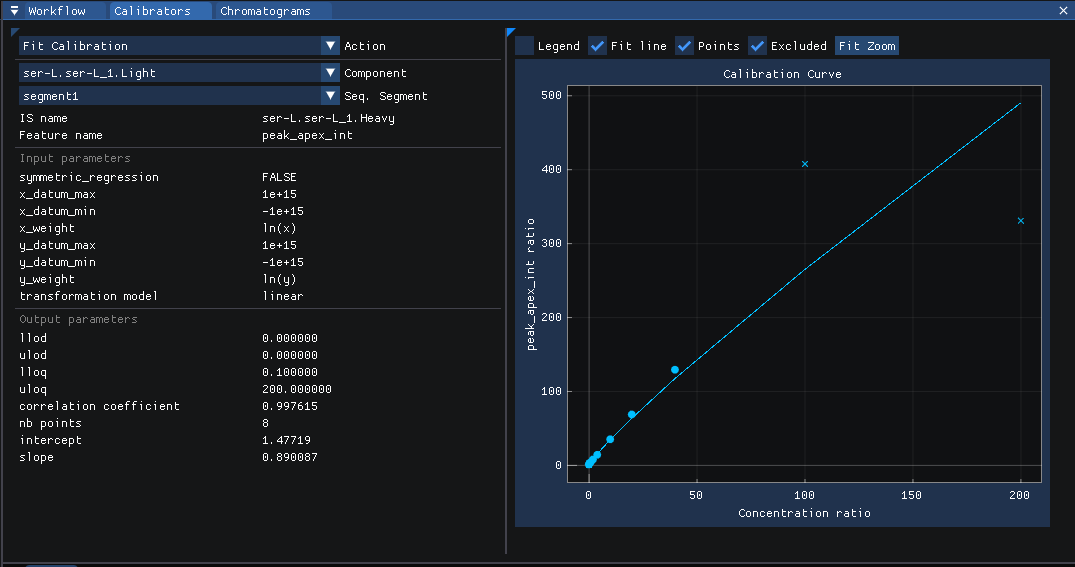

Selecting Exclude from calibration will remove the point from the calibration curve. If Fit calibration is selected in the Actions menu of the Calibrators view, the quantitation method will be re-calculated without the point included. If Optimize calibrations is selected in the Actions menu of the Calibrators view, the quantitation method will be re-optimized using the workflow step OPTIMIZE_CALIBRATION.

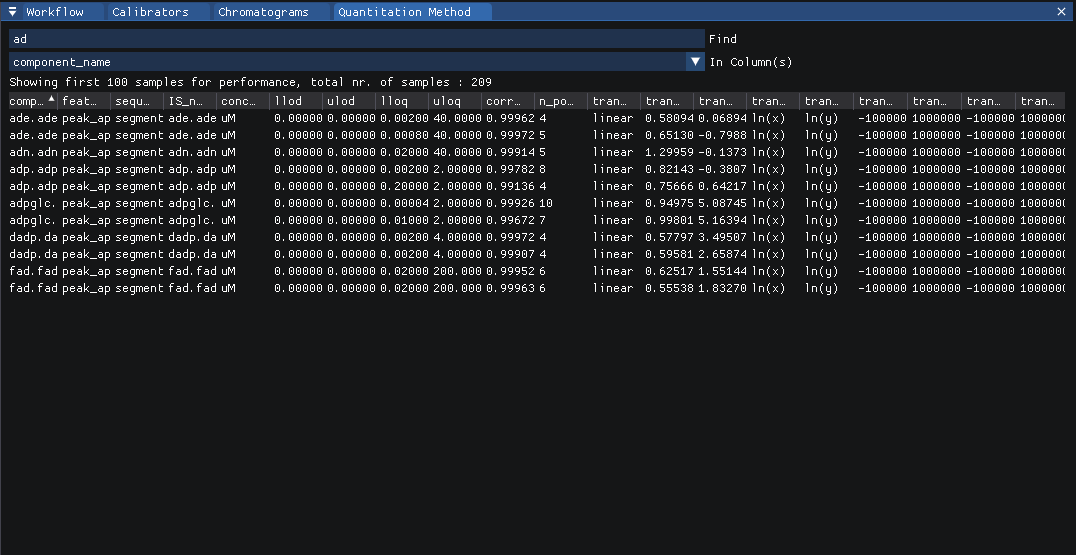

A tabular view of all quantitation methods can be found under View | Workflow parameters | Quantitation methods.

Select features from the “best” dilution

Usage

Due to the orders of magnitude difference between different metabolite, lipid, and protein species concentrations in biological samples, one often needs to run the same sample at different concentrations to capture all of the different species within the limits of detection for the instrument. After processing each of the different sample dilutions (referred to as dilution_factor in SmartPeak), the user often would like to select a specific dilution that a particular component should be reported because that dilution has been found to provide the best signal to noise ratio for that component.

SmartPeak allows to specify this selection as a step of the MERGE_INJECTIONS workflow step using the select_preferred_dilution parameter (false by default).

When select_preferred_dilution is set to true, SmartPeak will look for a file specified by a second parameter select_preferred_dilutions_file. This csv file will conatins the list of components and the corresponding preferred dilution:

select_dilution.csv

component_name	dilution_factor
trp-L.trp-L_1.Heavy	10
trp-L.trp-L_1.Light	10
arg-L.arg-L_1.Heavy	1
arg-L.arg-L_1.Light	1

During the MERGE_INJECTIONS all components from the features that are listed in the file and to which the injection dilution does not correspond to the value set in the select_preferred_dilutions_file will be removed. The MERGE_INJECTIONS will be then applied as usual.

Example

Our sequence file is as follow (only relevant columns appear):

sequence.csv

sample_name	sample_group_name	scan_polarity	scan_mass_low	scan_mass_high	dilution_factor
Lyubomir_Split_2_210914_4	Group1	positive	-1	-1	10
Lyubomir_Split_2_210914_25	Group1	negative	-1	-1	10
Lyubomir_Split_2_210914_5	Group1	positive	-1	-1	1
Lyubomir_Split_2_210914_26	Group1	negative	-1	-1	10
Lyubomir_Split_2_210914_6	Group1	positive	-1	-1	1
Lyubomir_Split_2_210914_6	Group1	negative	-1	-1	10

Please note that all our injections we want to select from are in the same group.

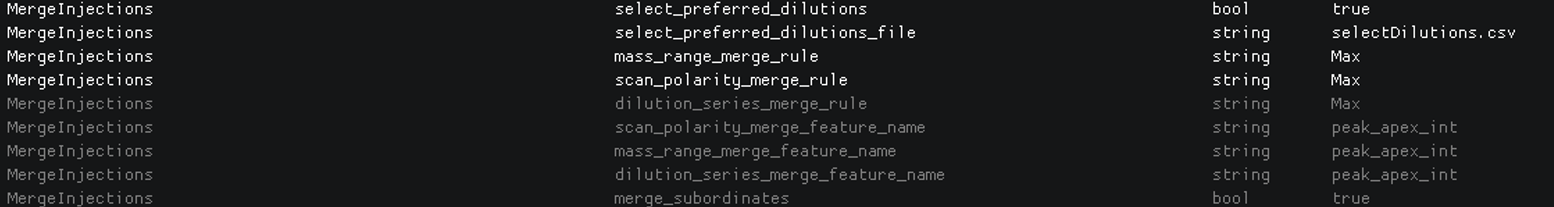

The parameters are set as follow in SmartPeak:

note that the mass_range_merge_rule, dilution_series_merge_rule and scan_polarity_merge_rule as been set to Max in our example, but you can set to another value. These rules will be applied after having explcuding the features that do not correspond to our preference.

The dilution file is as follow:

select_dilution.csv

component_name	dilution_factor
trp-L.trp-L_1.Heavy	10
trp-L.trp-L_1.Light	10
arg-L.arg-L_1.Heavy	1
arg-L.arg-L_1.Light	1

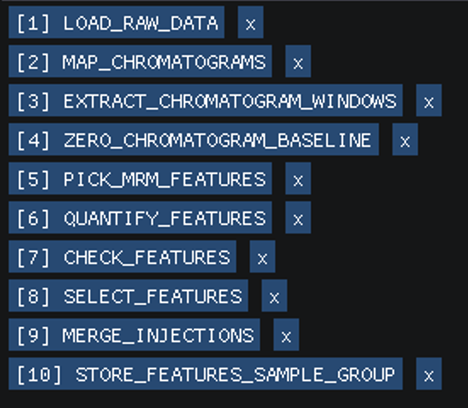

The workflow will be:

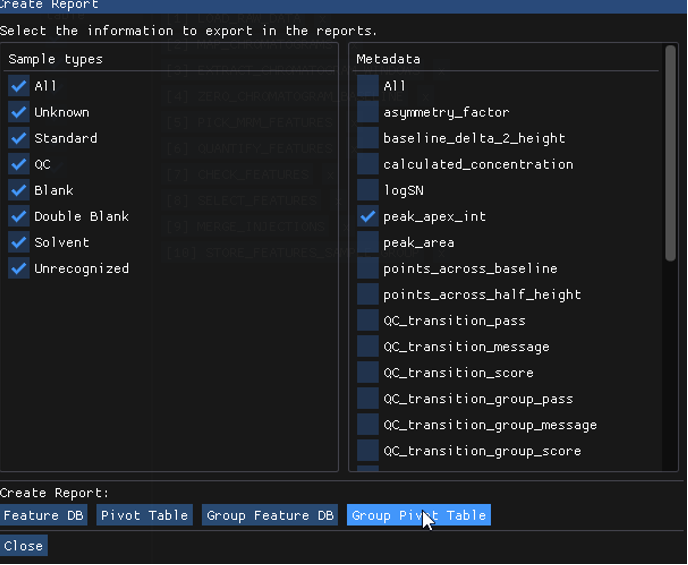

Once the workflow has been run, We will export the Group Pivot Table:

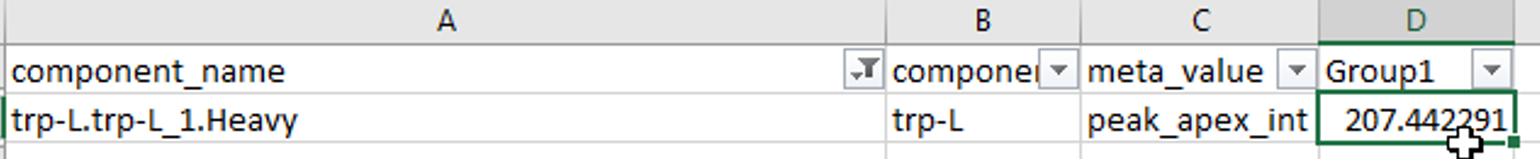

The result is then:

The value for peak_apex_int is 207.

Indeed the feature database willl show us that it is the maximum peak_apex_int from the sample based on dilution 10.

Now, in our dilution file, if we set trp-L.trp-L_1.Heavy to preferred dilution_factor 1, the result will be 137, which is the maximum peak_apex_int from the sample based on dilution 1.

Optimize workflow step algorithm parameters

Usage

Todo

Describe the usage.

Example

Todo

Provide an example.

Debug feature picking, selection, and filtering (and acquisition methods)

Usage

Todo

Describe the usage.

Example

Todo

Provide an example.

Enable automated QC/QA of workflows

Usage

Todo

Describe the usage.

Example

Todo

Provide an example.
